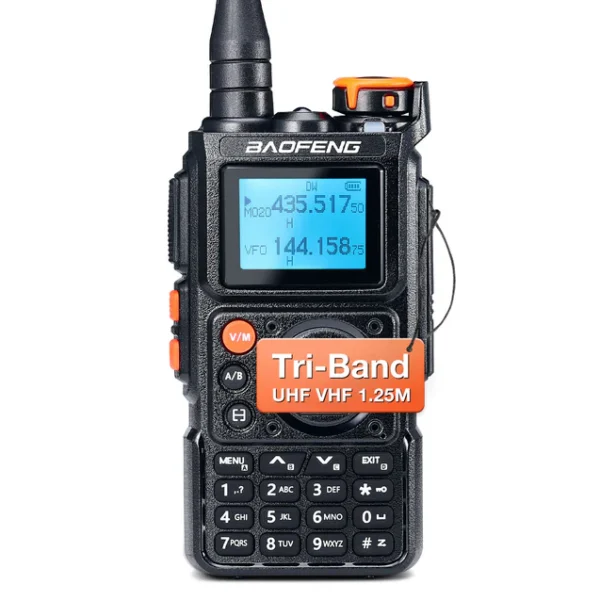

BAOFENG TALKIE WAKIE UV-K61

Key Specifications

Product Type

• Two-Way Radio (Walkie Talkie)
• Brand: Baofeng
• Model: UV-K61
• Color: Typically Black (may vary)
• Type: Dual-band handheld transceiver

Design & Build

• Body: Compact and rugged plastic housing

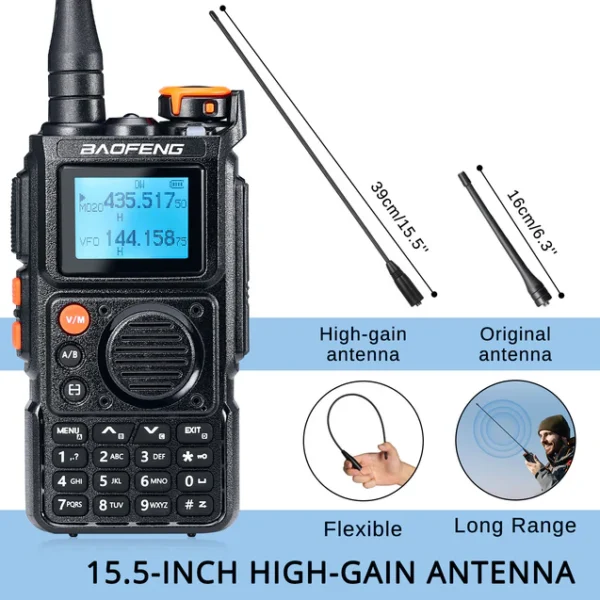

• Antenna: Detachable high-gain antenna
• Display: LCD screen with backlight
• Buttons: Keypad with shortcut function keys
• Weight: Approx. 200g (with battery and antenna)

Frequency & Channels

• Frequency Range: VHF: 136–174 MHz
• UHF: 400–520 MHz
• Channels: Up to 128 programmable channels
• Channel Spacing: 25kHz (wide) / 12.5kHz (narrow)
• Frequency Step: 2.5 / 5 / 6.25 / 10 / 12.5 / 25 kHz

Power & Battery

• Output Power: VHF/UHF: Up to 5W (high) / 1W (low)
• Battery: 1800mAh Li-ion rechargeable
• Battery Life: Up to 12 hours (varies with usage)
• Charging: Desktop charging dock (included)

Functions & Features

• Dual-Band / Dual Display / Dual Standby
• VOX (Voice-activated transmission)
• CTCSS / DCS (privacy codes)
• Emergency Alarm
• LED Flashlight
• Channel Scan & Monitor
• Time-Out Timer
• Battery Saver Mode
• Keypad Lock
• Programmable via PC software (cable sold separately)

Audio

• Speaker: Built-in loudspeaker
• Microphone: Built-in and external mic support (2-pin Kenwood type)
• Audio Output: Clear audio with adjustable volume

Connectivity

• Antenna Port: SMA-F
• Accessory Port: Dual-pin for external mic/speaker
• PC Programming: Yes (via USB cable and software)

Range

• Communication Distance: Up to 5–10km (line of sight / open area)
• Actual range depends on terrain, weather, and obstacles
