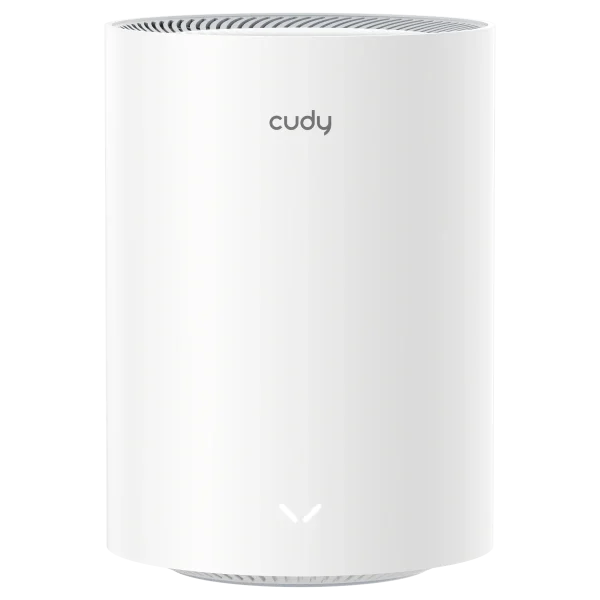

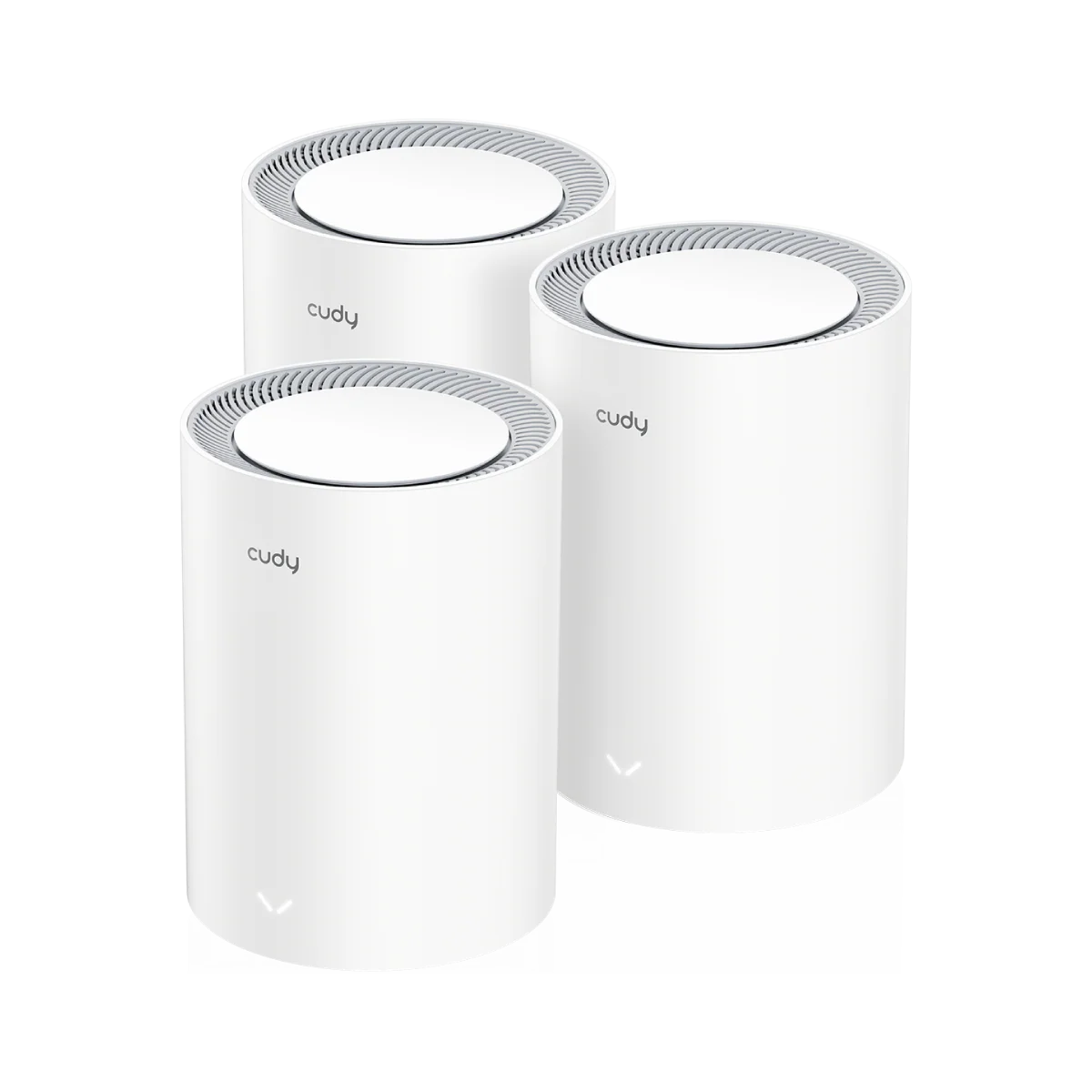

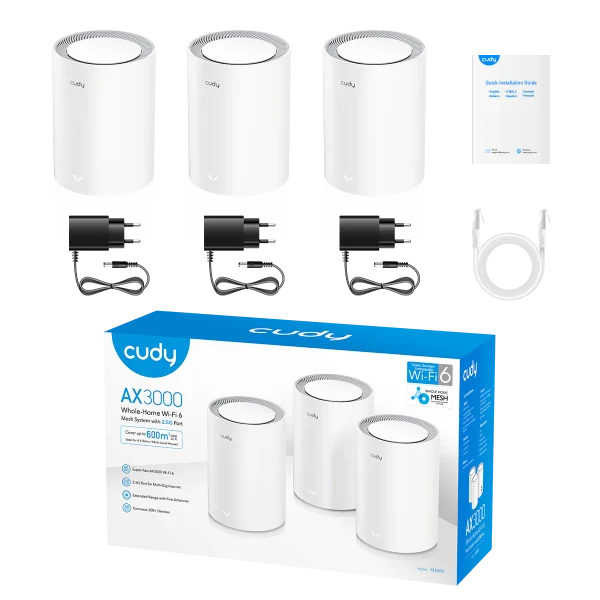

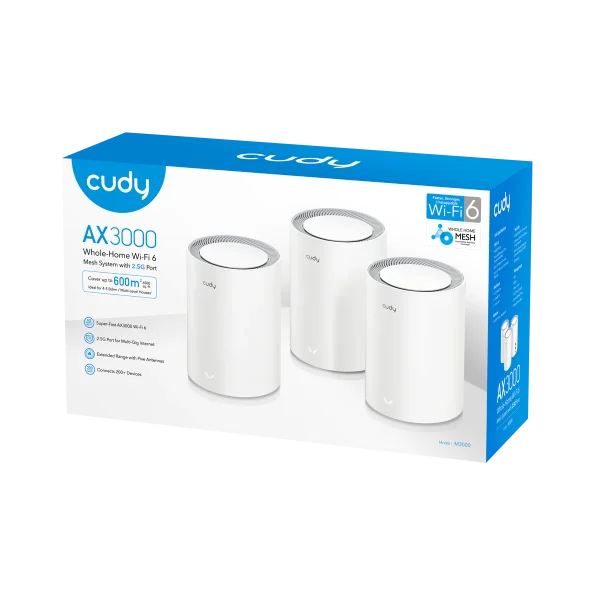

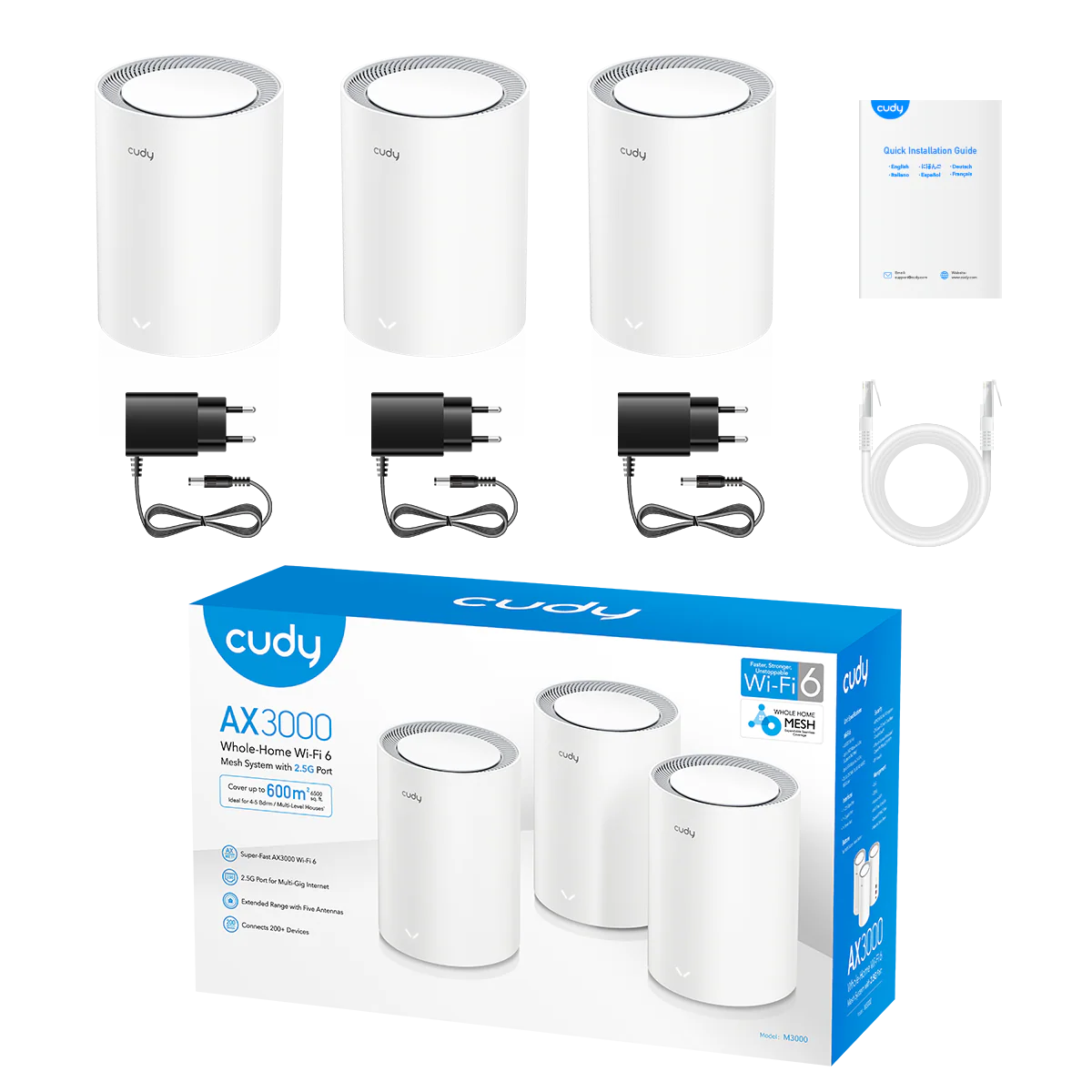

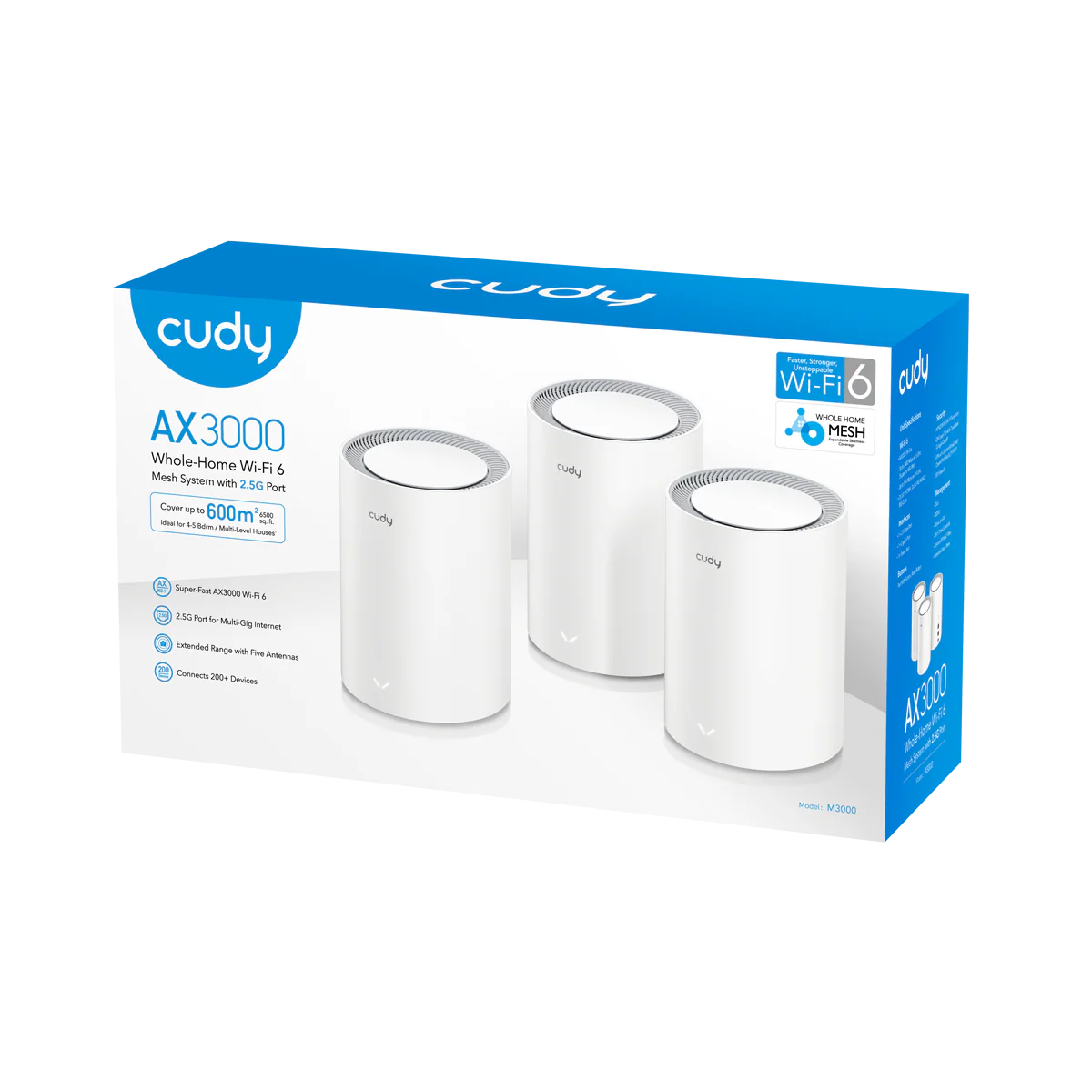

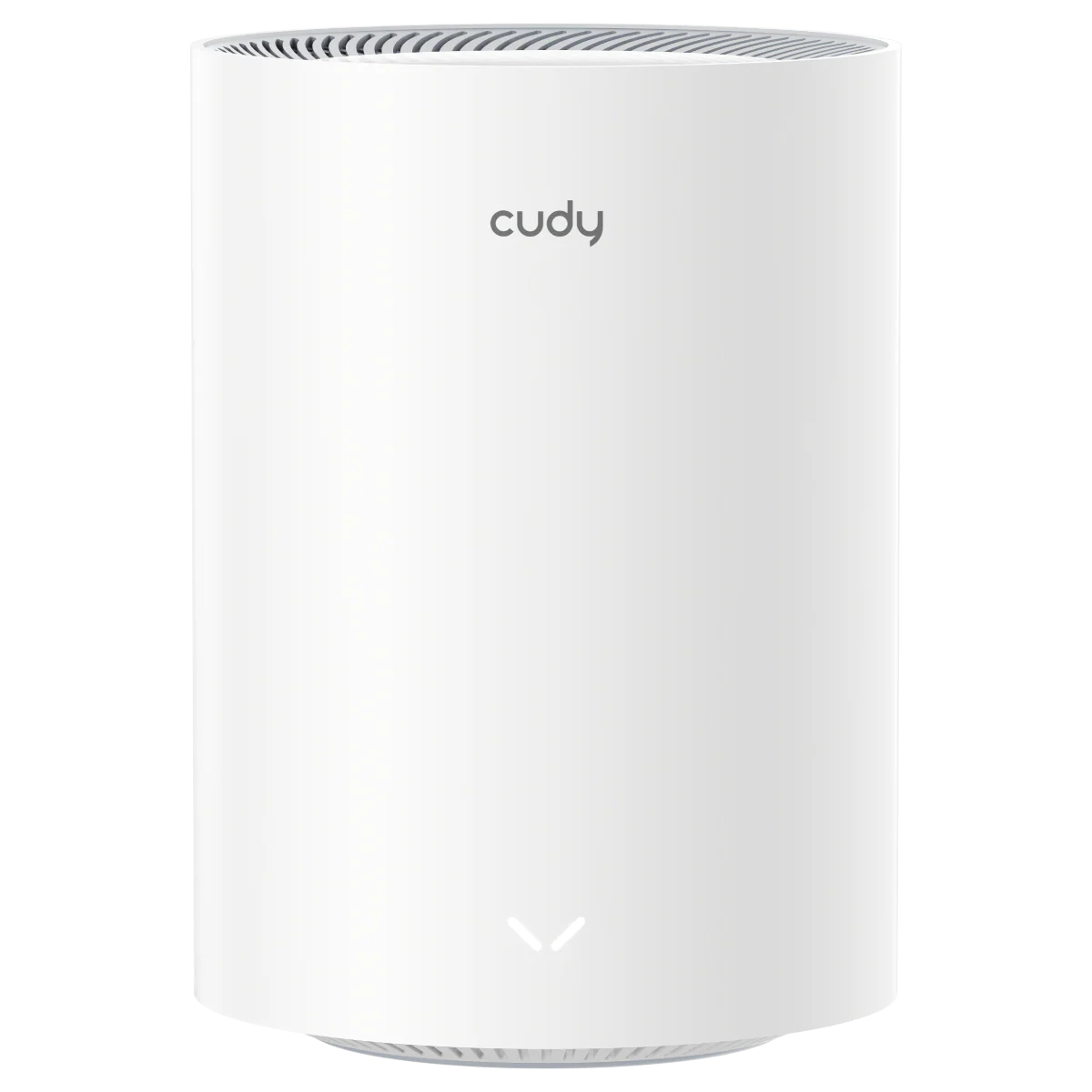

Cudy AX3000 Whole Home WiFi 6 Mesh System (3-Pack)

Key Specifications

• Model: M3000 (also known as AX3000)

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)

• Wi-Fi Speeds:

  • 5 GHz: Up to 2402 Mbps

  • 2.4 GHz: Up to 574 Mbps

• Total Speed: Up to 3000 Mbps

• Processor: 1.3 GHz Dual-Core ARM Cortex-A53

• Memory:

  • Flash/ROM: 128 MB (1 Gbit) NAND

  • RAM: 256 MB (2 Gbit) DDR3

• Antennas: 5× Internal (3 for 5 GHz, 2 for 2.4 GHz)

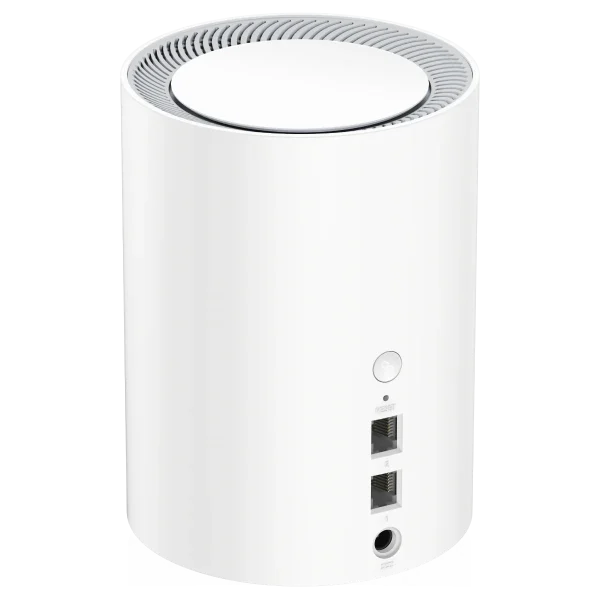

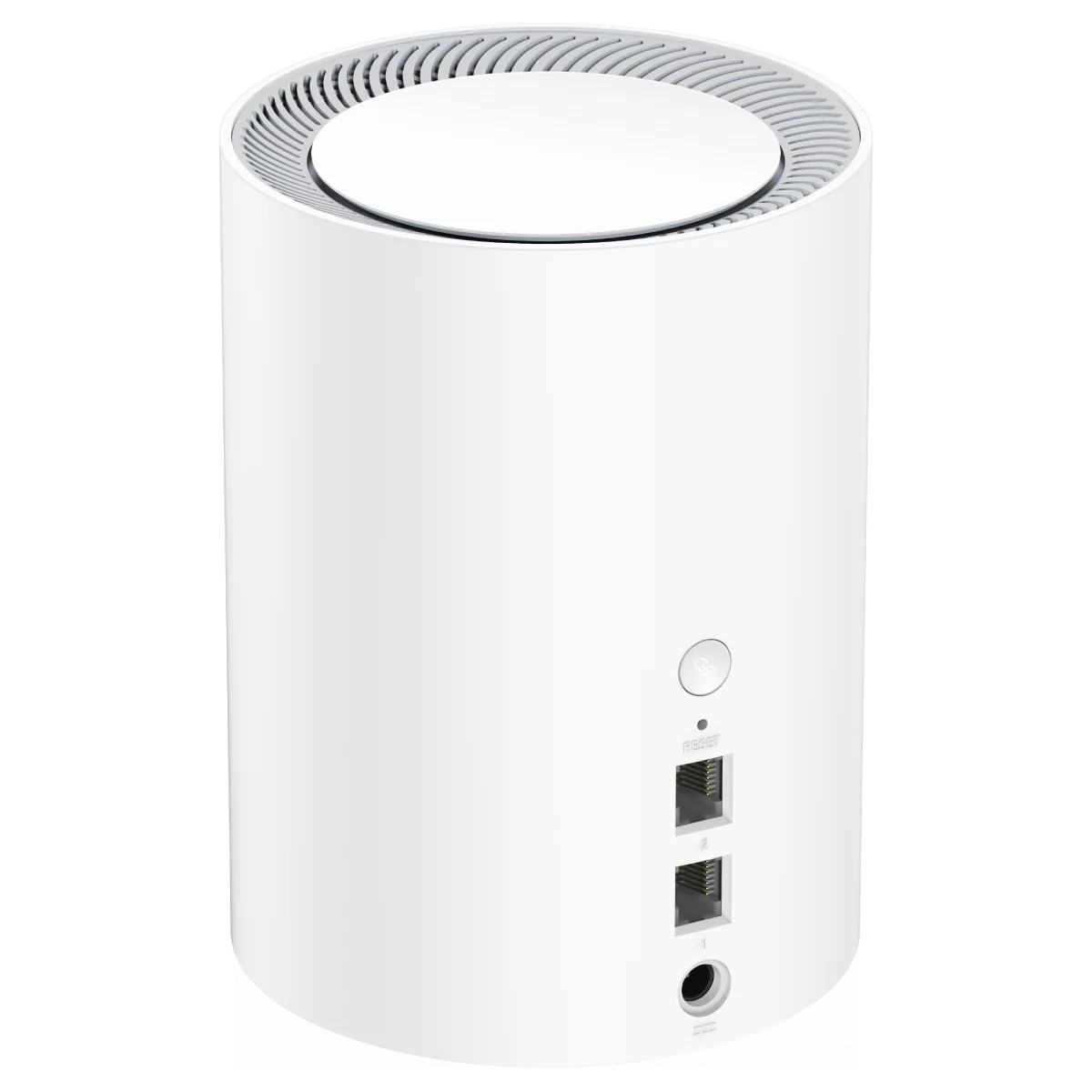

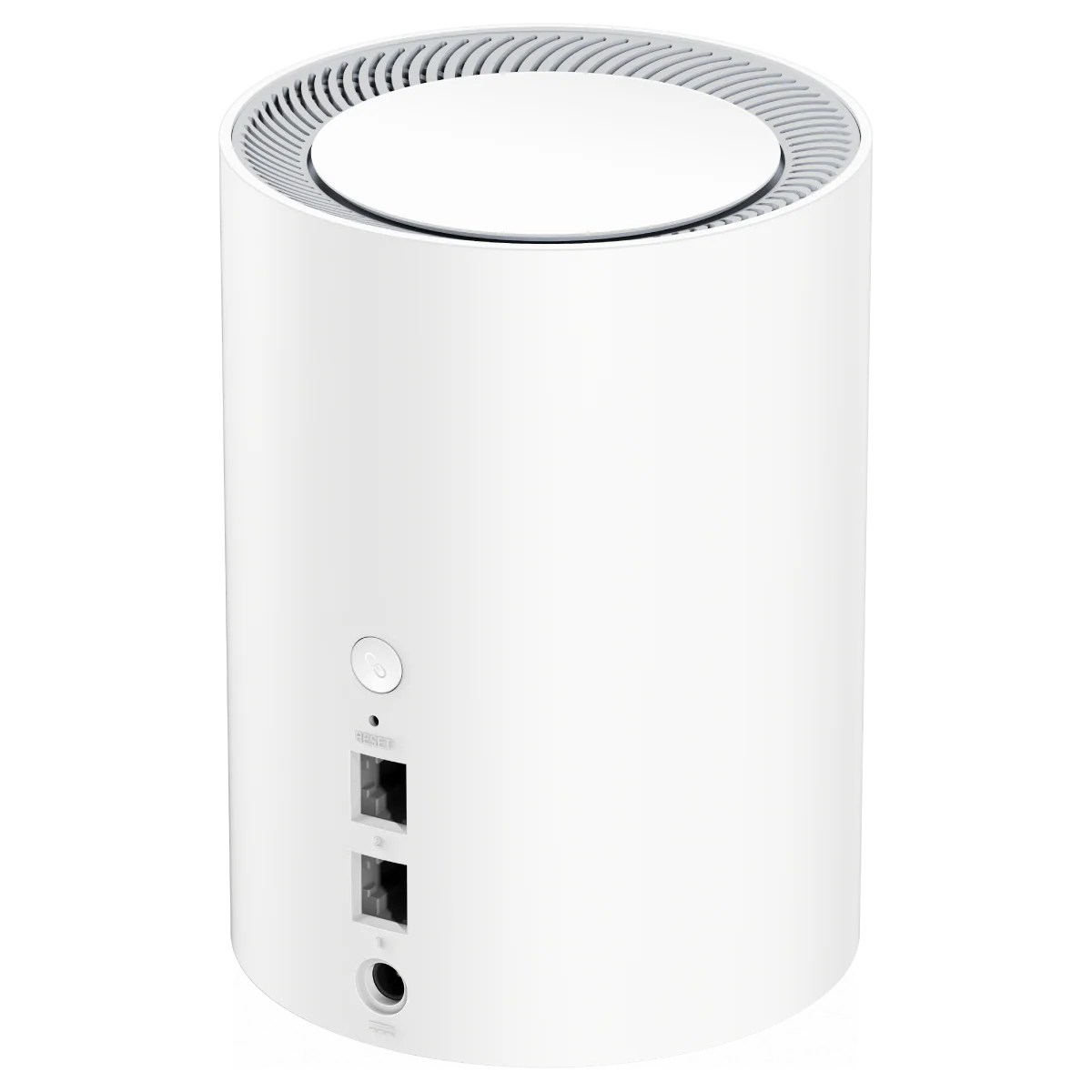

• Ethernet Ports:

  • 1× 2.5Gbps Multi-Gig WAN Port: Ideal for internet subscriptions above 1 Gbps

  • 1× 10/100/1000Mbps LAN Port: For wired connections

• Coverage: Up to 7,000 sq. ft. with the 3-pack system

• Device Support: Supports up to 200 connected devices

• Backhaul Options: Supports Ethernet backhaul for improved performance

• Mesh Technology: Cudy Mesh with seamless roaming

• Security Features:

  • WPA3 Encryption

  • VPN Server and Client Support

• Management: Cudy App for cloud-based control and monitoring

• Additional Features:

  • OFDMA and MU-MIMO for efficient data transmission

  • Beamforming technology for targeted signal delivery
