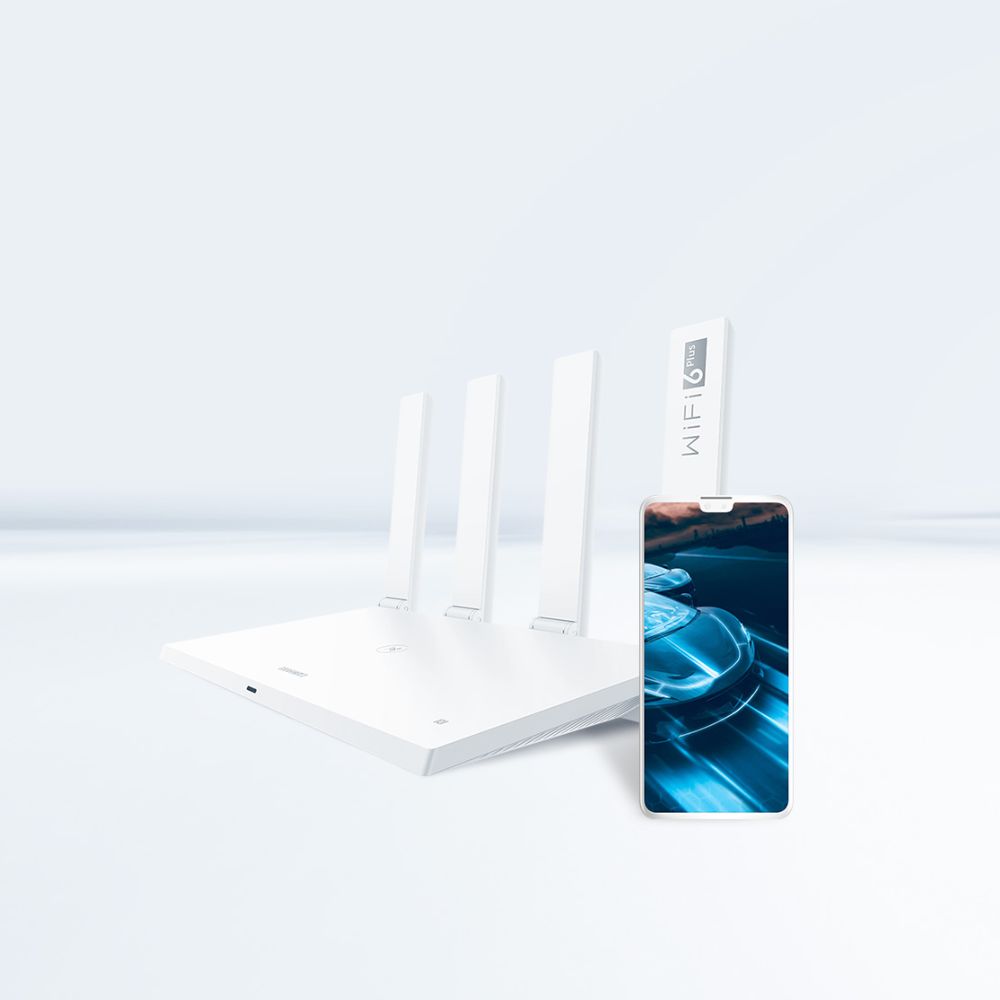

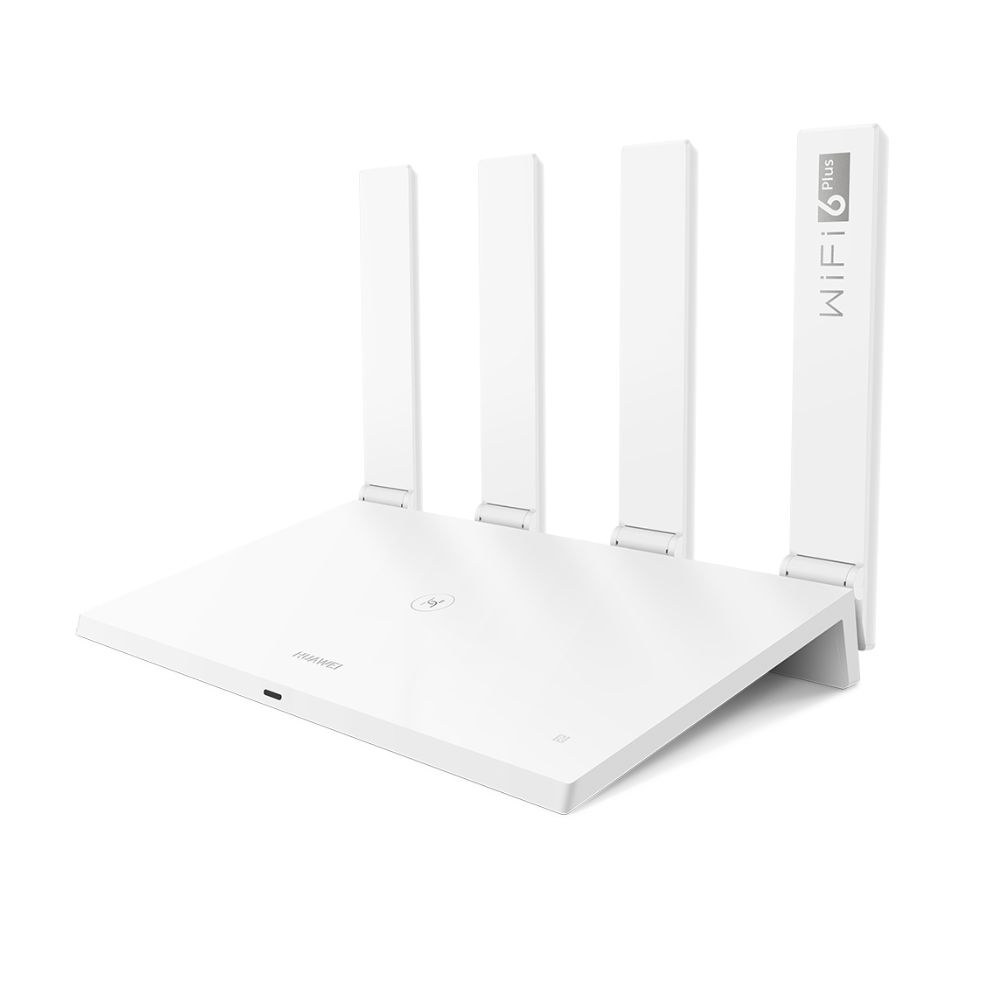

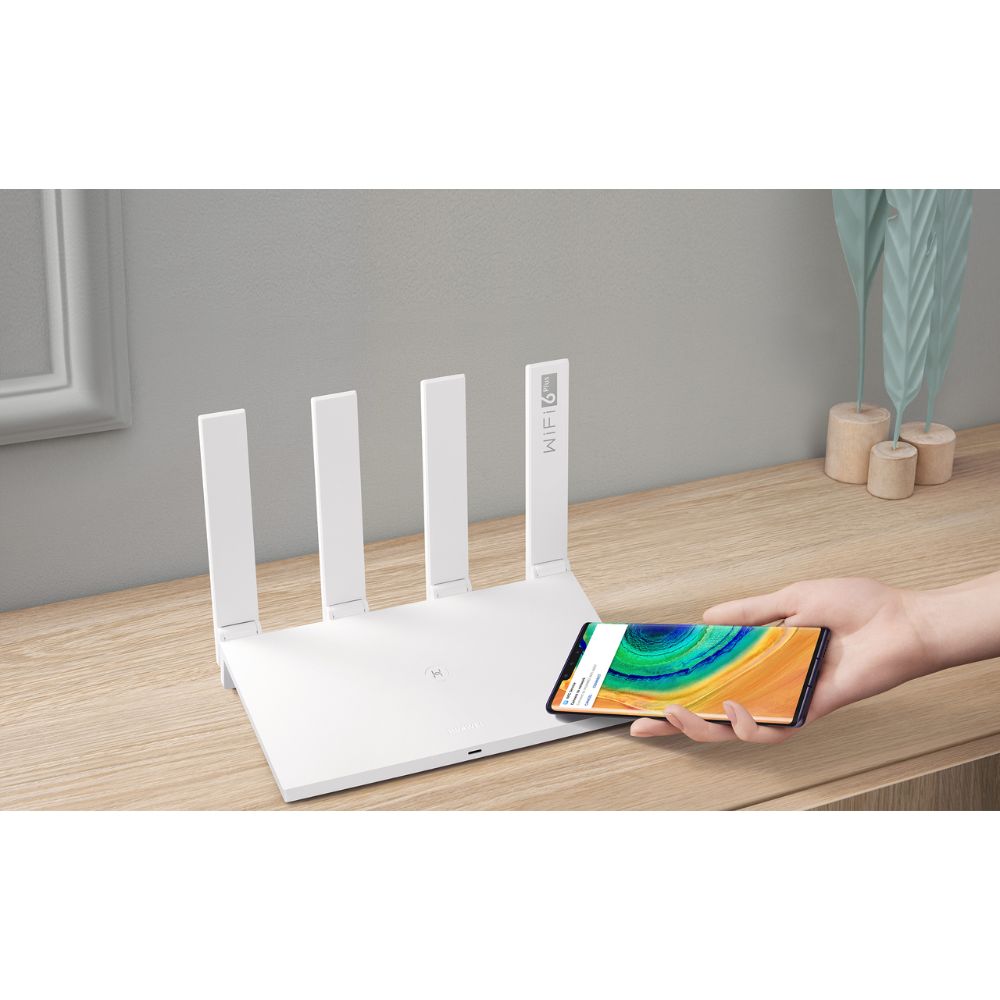

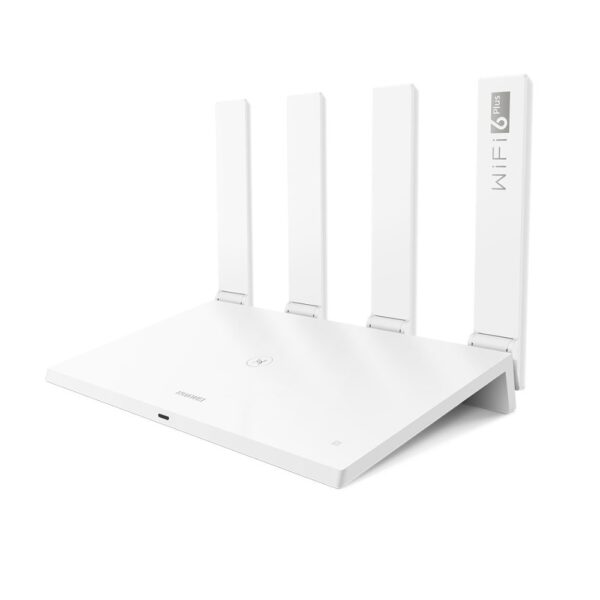

HUAWEI AX3 WS7100 V2 ROUTER WI-FI 6 PLUS

Key Specifications

Design & Build

• Model: WS7100 V2
• Type: Wireless Router
• Color: White
• Antennas: 4 external high-gain antennas
• Mounting: Desktop

Wi-Fi & Speed

• Wi-Fi Standard: Wi-Fi 6 Plus (802.11ax)
• Frequency Bands: Dual-band (2.4GHz + 5GHz)
• Speed:2.4GHz: up to 574 Mbps
• 5GHz: up to 2402 Mbps
• Total Speed: Up to 3000 Mbps

Processor & Performance

• CPU: Gigahome Quad-Core 1.4GHz
• RAM: 256MB
• Flash Memory: 128MB

Coverage & Capacity

• Coverage: Enhanced signal strength with Huawei Wi-Fi 6 Plus
• Device Support: Supports up to 128 connected devices
• OFDMA Multi-user Transmission: Yes
• MU-MIMO: Supported

Connectivity & Ports

• Ethernet Ports:
• 1 × WAN (10/100/1000 Mbps)
• 3 × LAN (10/100/1000 Mbps)
• Network Standards: IPv4 / IPv6
• WPS Button: Yes

Security & Management

• Encryption: WPA3, WPA2-PSK
• Firewall & Access Control: Supported
• Parental Controls: Yes
• Guest Network: Yes
• Huawei AI Life App: Remote management and settings

Other Features

• HarmonyOS Mesh+: Easy Mesh networking with other Huawei routers
• HUAWEI Share One-Touch Connect (via NFC-enabled phone)
• Bridge Mode: Supported
• Firmware Updates: OTA (Over-the-Air)
