Key Specifications
Hardware Features:

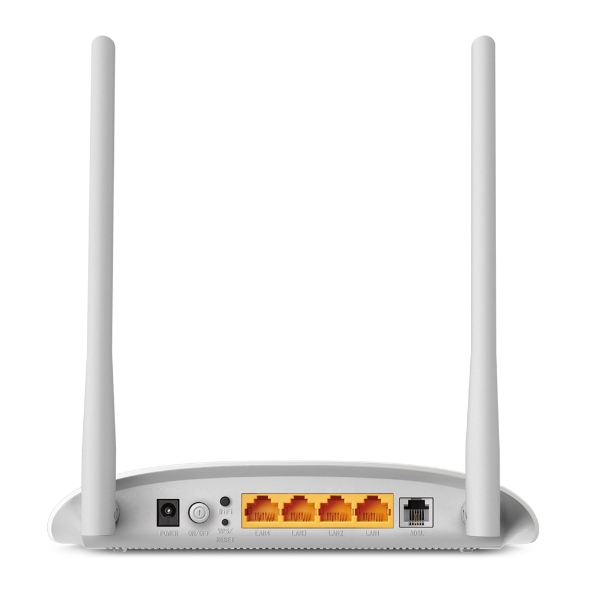

Interfaces:
- 4 × 10/100Mbps RJ45 Ports
- 1 × RJ11 Port
Buttons:
- 1 × Power On/Off Switch
- 1 × WPS Button
- 1 × Wi-Fi On/Off Button
External Power Supply: 9VDC/0.6A
Dimensions: 195 × 130 × 35 mm (7.7 × 5.1 × 1.4 in)
Antenna Type: 2 × 5dBi Omni-directional, Fixed
Certifications: CE, FCC, RoHS
Wireless Features:
- Standards: IEEE 802.11n, 802.11g, 802.11b
- Frequency: 2.400–2.4835GHz
- Transmit Power: <20dBm (EIRP)
- Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering
Software Features:
- Quality of Service (QoS): Supports IPP/ToS, DSCP, and 802.1p remarking
- Security Features: NAT Firewall, SPI Firewall, MAC/IP/Packet/Application/URL Filtering, DoS Protection
- Management: Web-based Configuration, Remote Management, Telnet, SNMP v1/2c, TR-069, Firmware Upgrade via Web
- VPN Pass-Through: PPTP, L2TP, IPSec
- Protocols Supported: ATM Forum UNI3.1/4.0, PPPoA, PPPoE, IPoA
- PVC Support: Up to 8 PVCs
